Bounding Box Wrapper
This example demonstrates the various features of the
qtcad.builder.Builder.wrap_in_bbox and
qtcad.builder.Builder.extrude_mask_bbox operations using an
Xmon coupler layout.
Introduction
The qtcad.builder.Builder.wrap_in_bbox method wraps the entire model
or a specific group in a bounding box with a designated padding. This can
be useful, for example, when wrapping a device in a surrounding
dielectric such as air.
Similarly, qtcad.builder.Builder.extrude_mask_bbox allows for
extruding the bounding box of a mask directly.
First, we import the required module.
from qtcad.builder import Builder
Base Model Factory
We define a helper function to instantiate a qtcad.builder.Builder,
load the layout of the Xmon coupler, and extrude the metal
layer. This allows us to demonstrate different wrapping features from a
clean baseline.
The layout contains three physical groups: "ground_plane", "xmon",
and "coupler".
def make_xmon_base() -> Builder:
return (
Builder(name="xmon_coupler", length_unit_exponent=-6)
.load_layout("./layouts/xmon_coupler.oas", cell_name="TOP")
.set_mesh_size(50)
.use_mask("layer_1")
.extrude(0.1)
)
Case 1: Wrapping the Entire Model
To wrap the entire model, we use fill_mode() to ensure
physical groups inherit intersecting regions, set the active group name to
"wrapper_all", and call wrap_in_bbox()
with a 3-tuple representing the padding in the x, y, and z directions.
- Builder.wrap_in_bbox(padding: float | tuple[float, float] | tuple[float, float, float] = 0, group: str | list[str] | Callable[[PhysicalGroup], bool] | None = None, nowarn: bool = False) Self
Wrap the
groupor the entire model (ifgroupisNone) in a bounding box with the givenpadding. The name of the resulting volume must be set withset_group_name. Ifpaddingis a single value, it is applied to all three dimensions. If it is a 3-tuple, the values are applied to the x, y and z dimensions respectively. If it is a 2-tuple, the values are applied to the x and y dimensions to create a surface.- Parameters:
padding – The padding to add to the bounding box. Can be a single value or a 3-tuple for x, y and z padding.
group – The group to wrap in a bounding box. If
None, the entire model is wrapped. Seeget_groupfor details on the allowed types.nowarn – If
True, do not warn if the fragmentation mode is notFragmentationMode.FILL.
builder_all = (
make_xmon_base()
.fill_mode()
.set_group_name("wrapper_all")
.wrap_in_bbox(padding=(200, 200, 300))
)
[16:05:12] INFO Loading layout from cache misc.py:266
/home/hiro/.cache/qtcad/builder/layout_0c2da1173d2c
53e07f68cbc3f4f40f623c28c12516346fa5282b274d97d4cb3
5_TOP_name_None_-6.pkl
INFO Adding mask 'layer_1' from cache masks.py:814
INFO Using mask 'layer_1' (implicitly selecting _builder.py:849
shapes [Polygon 0 'coupler', Polygon 1 'xmon',
Polygon 2 'ground_plane'])
INFO Extruding shape 0 from mask 'layer_1' with _builder.py:3050
name 'coupler' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'coupler'
INFO Extruding shape 1 from mask 'layer_1' with _builder.py:3050
name 'xmon' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'xmon'
INFO Extruding shape 2 from mask 'layer_1' with _builder.py:3050
name 'ground_plane' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'ground_plane'
[16:05:13] INFO Setting z-coordinate to 0.1 _builder.py:951
INFO Wrapping model in bounding box from _builder.py:1278
[-553.5000001 -540.0000001 -300.0000001] to
[580.5000001 540.0000001 300.1000001].
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'wrapper_all'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_all_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_all_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_all_top'
INFO Identifying potential intersections... fragmenter.py:295
INFO Fragmenting... fragmenter.py:325

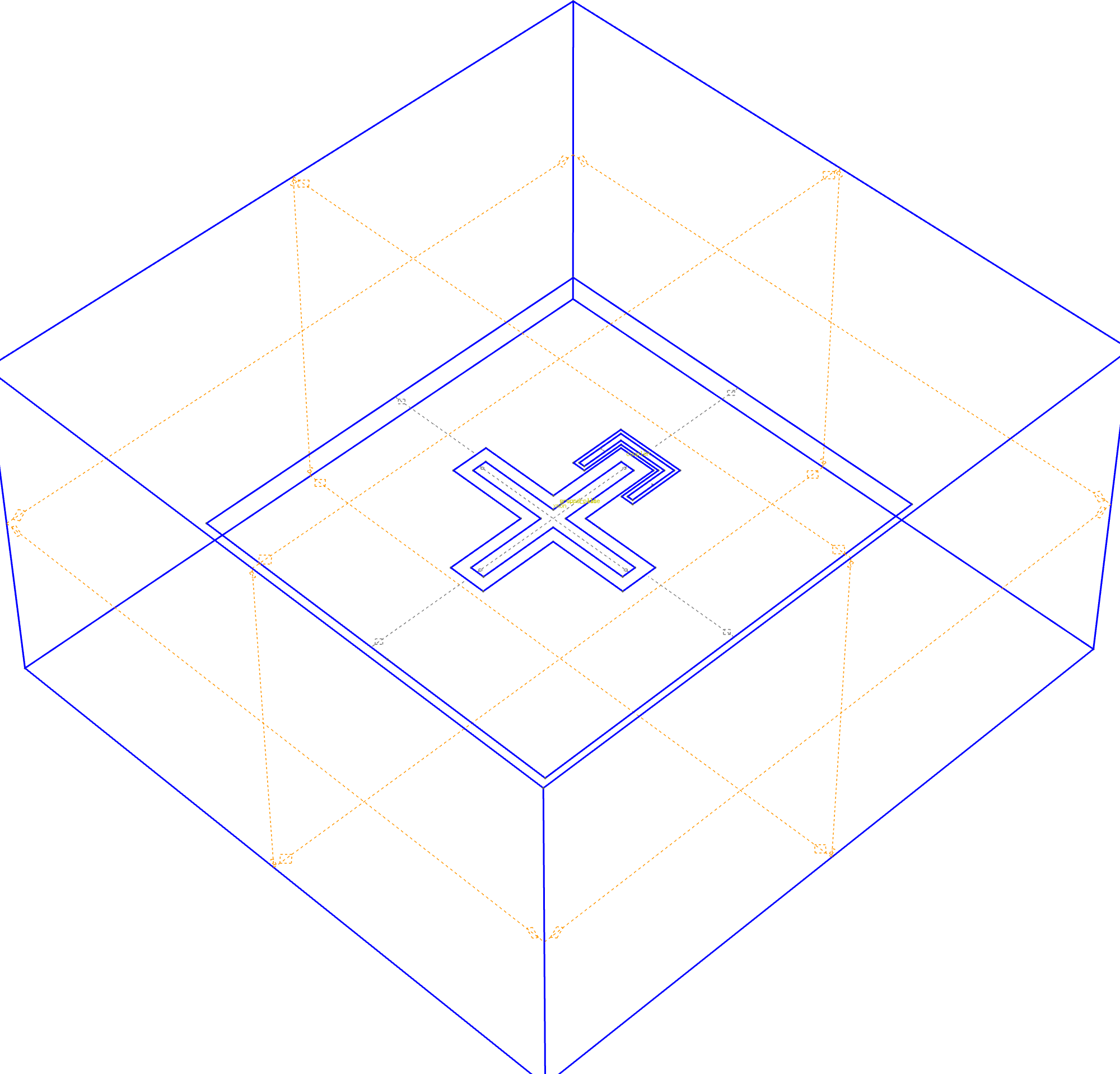

We view the resulting model from a side view and save it as a PNG.
builder_all.view(
save="figs/xmon_wrapped_all.png",
angles=(-45, 0, 45),
volume_labels=True,
surfaces=True,
)
INFO Saving figure _builder.py:2129
<qtcad.builder.builder.Builder object at 0x7c1aee899550>
Case 2: Wrapping a Specific Group
Rather than wrapping the entire model, we can wrap a single specific physical
group. Here, we wrap only the coupler line ("coupler") in a local
bounding box named "wrapper_coupler".
builder_coupler = (
make_xmon_base()
.fill_mode()
.set_group_name("wrapper_coupler")
.wrap_in_bbox(padding=(50, 50, 20), group="coupler")
)
[16:05:14] INFO Loading layout from cache misc.py:266
/home/hiro/.cache/qtcad/builder/layout_0c2da1173d2c
53e07f68cbc3f4f40f623c28c12516346fa5282b274d97d4cb3
5_TOP_name_None_-6.pkl
INFO Adding mask 'layer_1' from cache masks.py:814
INFO Using mask 'layer_1' (implicitly selecting _builder.py:849
shapes [Polygon 0 'coupler', Polygon 1 'xmon',
Polygon 2 'ground_plane'])
INFO Extruding shape 0 from mask 'layer_1' with _builder.py:3050
name 'coupler' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'coupler'
INFO Extruding shape 1 from mask 'layer_1' with _builder.py:3050
name 'xmon' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'xmon'
INFO Extruding shape 2 from mask 'layer_1' with _builder.py:3050
name 'ground_plane' by 0.1 at z=0
[16:05:15] INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'ground_plane'
INFO Setting z-coordinate to 0.1 _builder.py:951
INFO Wrapping group 'coupler' in bounding box with _builder.py:1262
padding (50, 50, 20)
INFO Wrapping model in bounding box from [ _builder.py:1278
55.9999999 -103.5000001 -20.0000001] to
[241.0000001 103.5000001 20.1000001].
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'wrapper_coupler'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_coupler_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_coupler_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_coupler_top'
INFO Identifying potential intersections... fragmenter.py:295
INFO Fragmenting... fragmenter.py:325

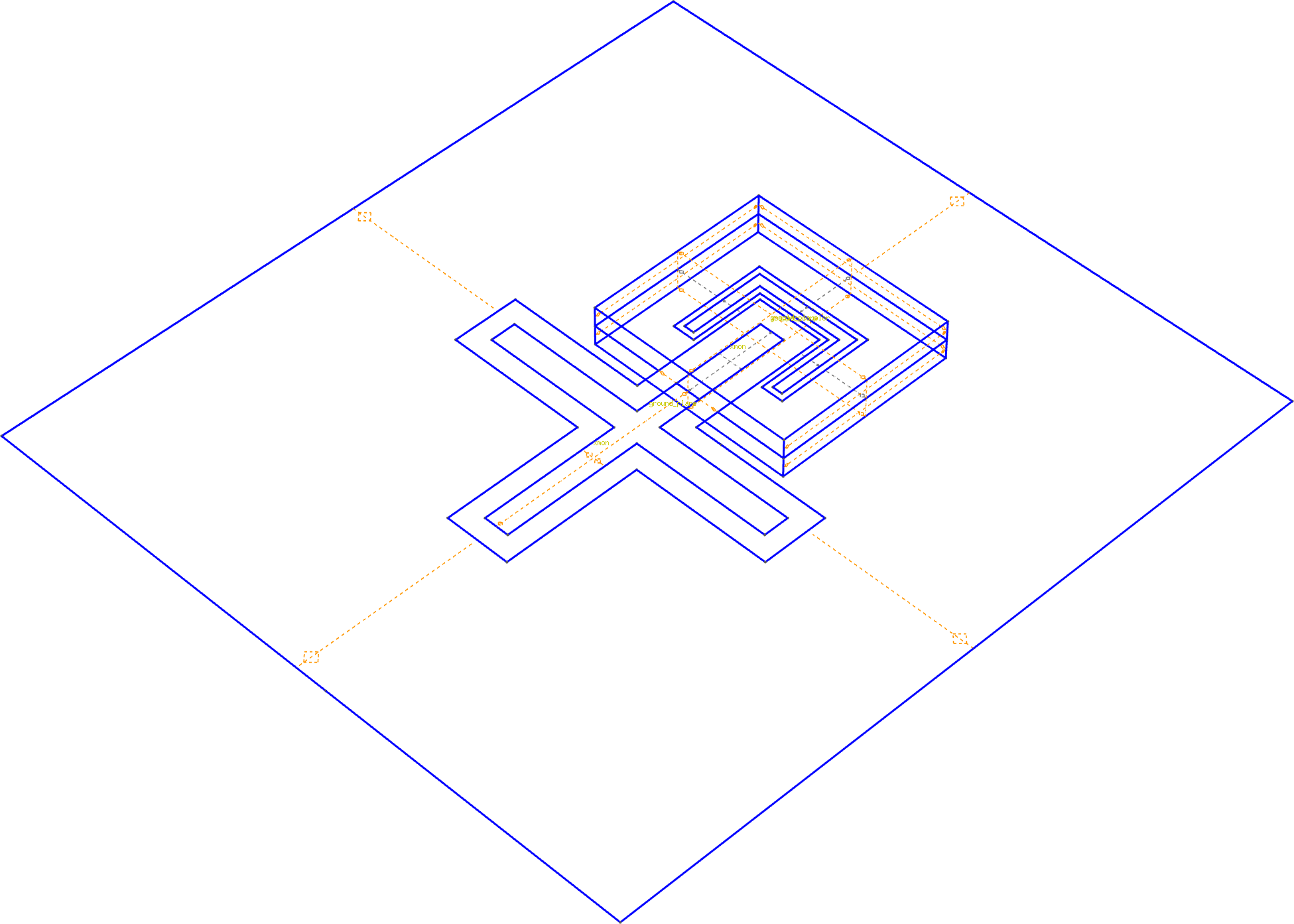

Viewing the model with the local coupler wrapper.
builder_coupler.view(
save="figs/xmon_wrapped_coupler.png",
angles=(-45, 0, 45),
volume_labels=True,
surfaces=True,
)
INFO Saving figure _builder.py:2129
<qtcad.builder.builder.Builder object at 0x7c1a73d8dd10>
Case 3: Wrapping a List of Specific Groups
The group argument also accepts a list of physical group names. Here, we
wrap both the "xmon" and "coupler" in a single
bounding box named "wrapper_active".
builder_active = (
make_xmon_base()
.fill_mode()
.set_group_name("wrapper_active")
.wrap_in_bbox(padding=(100, 100, 50), group=["xmon", "coupler"])
)
[16:05:16] INFO Loading layout from cache misc.py:266
/home/hiro/.cache/qtcad/builder/layout_0c2da1173d2c
53e07f68cbc3f4f40f623c28c12516346fa5282b274d97d4cb3
5_TOP_name_None_-6.pkl
INFO Adding mask 'layer_1' from cache masks.py:814
INFO Using mask 'layer_1' (implicitly selecting _builder.py:849
shapes [Polygon 0 'coupler', Polygon 1 'xmon',
Polygon 2 'ground_plane'])
INFO Extruding shape 0 from mask 'layer_1' with _builder.py:3050
name 'coupler' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'coupler'
INFO Extruding shape 1 from mask 'layer_1' with _builder.py:3050
name 'xmon' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'xmon'
INFO Extruding shape 2 from mask 'layer_1' with _builder.py:3050
name 'ground_plane' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'ground_plane'
INFO Setting z-coordinate to 0.1 _builder.py:951
INFO Wrapping group '['xmon', 'coupler']' in _builder.py:1262
bounding box with padding (100, 100, 50)
INFO Wrapping model in bounding box from _builder.py:1278
[-250.0000001 -250.0000001 -50.0000001] to
[291.0000001 250.0000001 50.1000001].
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'wrapper_active'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_active_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_active_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_active_top'
INFO Identifying potential intersections... fragmenter.py:295
INFO Fragmenting... fragmenter.py:325

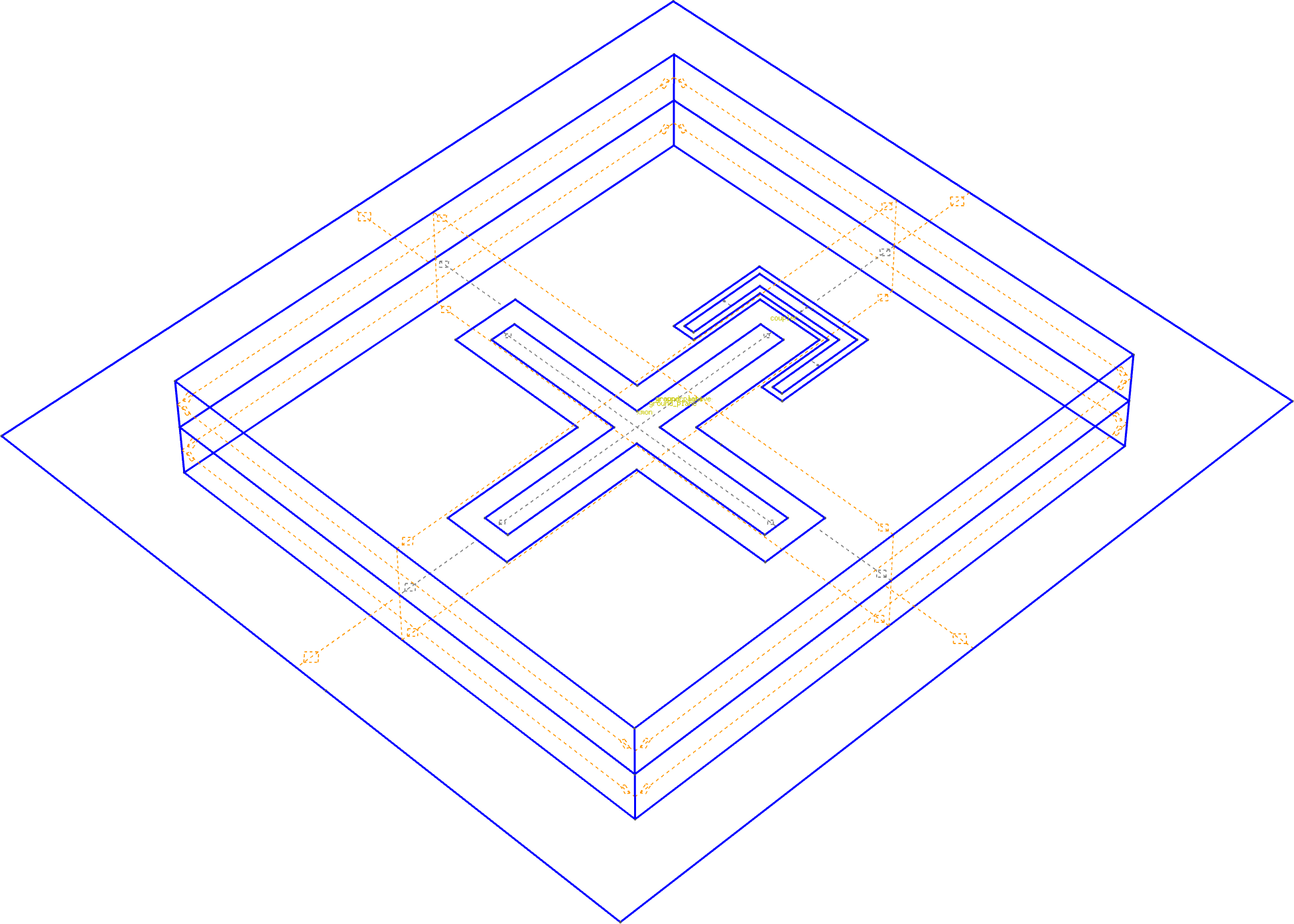

Viewing the model with the combined active components wrapper.
builder_active.view(
save="figs/xmon_wrapped_active.png",
angles=(-45, 0, 45),
volume_labels=True,
surfaces=True,
)
INFO Saving figure _builder.py:2129
<qtcad.builder.builder.Builder object at 0x7c1a78c55090>

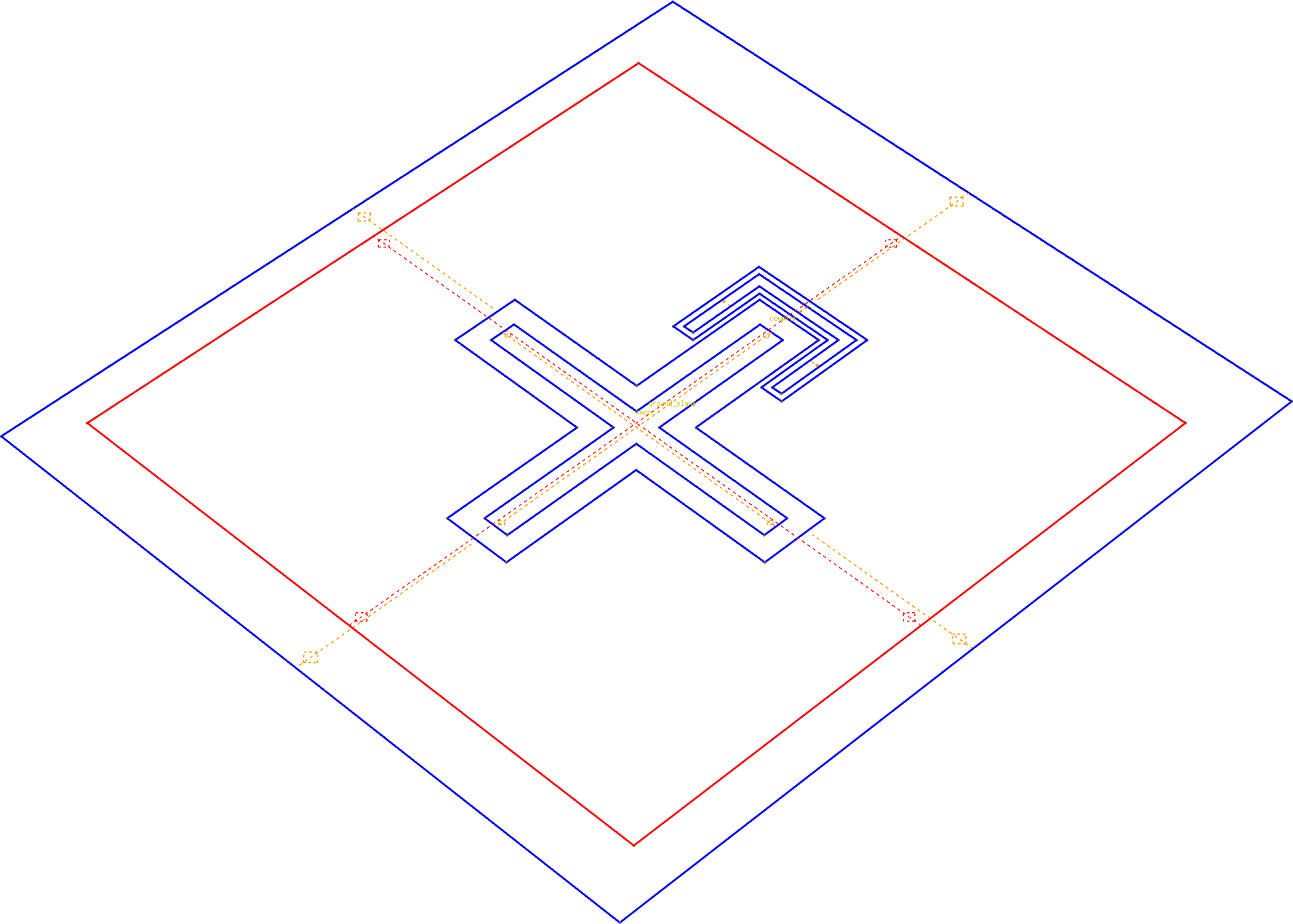

Case 4: Wrapping in a 2D Bounding Surface
If a 3D bounding box is not desired, we can wrap the active device components in a 2D
bounding surface using wrap_in_bbox_surface().
- Builder.wrap_in_bbox_surface(padding: float | tuple[float, float], group: str | list[str] | Callable[[PhysicalGroup], bool] | None = None) Self
Create a bounding surface around the
groupwith the givenpadding. The name of the resulting surface must be set withset_group_name. Ifpaddingis a single value, it is applied to both x and y dimensions. If it is a 2-tuple, the values are applied to the x and y dimensions respectively.- Parameters:
padding – The padding to add to the bounding box. Can be a single value or a 2-tuple for x and y padding.
group – The group to wrap in a bounding box. Must be specified. See
get_groupfor details on the allowed types.
We wrap only the "xmon" group in a 2D bounding surface at the central plane (z = 5)
with 150 padding named "wrapper_surface".
builder_surf = (
make_xmon_base()
.set_z(5)
.set_group_name("wrapper_surface")
.wrap_in_bbox_surface(padding=150, group="xmon")
)
[16:05:18] INFO Loading layout from cache misc.py:266
/home/hiro/.cache/qtcad/builder/layout_0c2da1173d2c
53e07f68cbc3f4f40f623c28c12516346fa5282b274d97d4cb3
5_TOP_name_None_-6.pkl
INFO Adding mask 'layer_1' from cache masks.py:814
INFO Using mask 'layer_1' (implicitly selecting _builder.py:849
shapes [Polygon 0 'coupler', Polygon 1 'xmon',
Polygon 2 'ground_plane'])
INFO Extruding shape 0 from mask 'layer_1' with _builder.py:3050
name 'coupler' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'coupler'
INFO Extruding shape 1 from mask 'layer_1' with _builder.py:3050
name 'xmon' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'xmon'
INFO Extruding shape 2 from mask 'layer_1' with _builder.py:3050
name 'ground_plane' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'ground_plane'
INFO Setting z-coordinate to 0.1 _builder.py:951
INFO Setting z-coordinate to 5 _builder.py:951
INFO Wrapping group 'xmon' in bounding box with _builder.py:1262
padding (150, 150, 0)
INFO Wrapping model in bounding box from [-3.e+02 _builder.py:1278
-3.e+02 -1.e-07] to [3.000000e+02 3.000000e+02
1.000001e-01].
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_surface'
INFO Identifying potential intersections... fragmenter.py:295
Viewing the model with the 2D bounding surface wrapper.
builder_surf.view(
save="figs/xmon_wrapped_surface.png",
angles=(-45, 0, 45),
volume_labels=True,
surfaces=True,
)
INFO Saving figure _builder.py:2129
<qtcad.builder.builder.Builder object at 0x7c1a78d974d0>
Case 5: Extruding a Mask Bounding Box
Finally, we demonstrate the extrude_mask_bbox()
operation. This method extrudes the bounding box of a specified mask (or the
current mask if none is specified) by a given height.
- Builder.extrude_mask_bbox(height: float, mask: int | str | Mask | Callable[[Mask], bool] | None = None) Self
[🏗️ Operation] Extrude the bounding box of the given mask (or the current mask if
maskisNone) byheightand take the intersection with the model.- Parameters:
height – The height by which to extrude the bounding box.
mask – The mask to use. If
None, the current mask will be used.
builder_extrude_bbox = (
make_xmon_base()
.set_z(0)
.set_group_name("wrapper_mask")
.extrude_mask_bbox(height=-200, mask="layer_1")
)
[16:05:19] INFO Loading layout from cache misc.py:266
/home/hiro/.cache/qtcad/builder/layout_0c2da1173d2c
53e07f68cbc3f4f40f623c28c12516346fa5282b274d97d4cb3
5_TOP_name_None_-6.pkl
INFO Adding mask 'layer_1' from cache masks.py:814
INFO Using mask 'layer_1' (implicitly selecting _builder.py:849
shapes [Polygon 0 'coupler', Polygon 1 'xmon',
Polygon 2 'ground_plane'])
INFO Extruding shape 0 from mask 'layer_1' with _builder.py:3050
name 'coupler' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'coupler_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'coupler'
INFO Extruding shape 1 from mask 'layer_1' with _builder.py:3050
name 'xmon' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'xmon_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'xmon'
INFO Extruding shape 2 from mask 'layer_1' with _builder.py:3050
name 'ground_plane' by 0.1 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'ground_plane_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'ground_plane'
INFO Setting z-coordinate to 0.1 _builder.py:951
INFO Setting z-coordinate to 0 _builder.py:951
INFO Using mask 'layer_1' (implicitly selecting _builder.py:849
shapes [Polygon 0 'coupler', Polygon 1 'xmon',
Polygon 2 'ground_plane'])
INFO Extruding shape 3 from mask 'layer_1' with _builder.py:3050
name 'layer_1_bbox' by -200 at z=0
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_mask_bottom'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_mask_side'
INFO Creating new physical group of dimension 2 _builder.py:2834
with name 'wrapper_mask_top'
INFO Creating new physical group of dimension 3 _builder.py:2834
with name 'wrapper_mask'
INFO Identifying potential intersections... fragmenter.py:295
INFO Fragmenting... fragmenter.py:325
[16:05:20] INFO Setting z-coordinate to -200 _builder.py:951
INFO Removing shape 3 'layer_1_bbox' from mask 1 masks.py:693
'layer_1'.

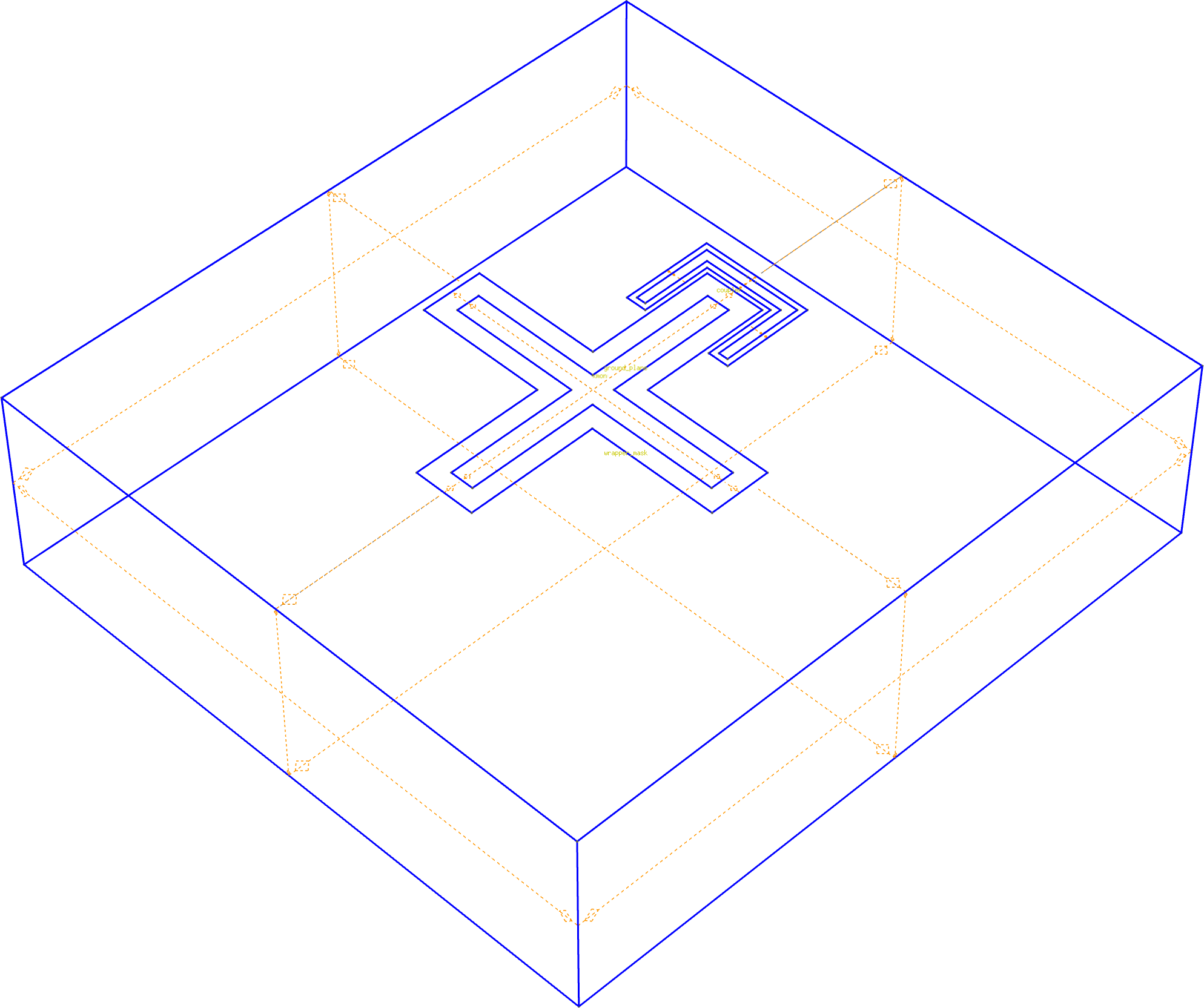

Viewing the model with the extruded mask bounding box.
builder_extrude_bbox.view(
save="figs/xmon_extrude_mask_bbox.png",
angles=(-45, 0, 45),
volume_labels=True,
surfaces=True,
)
INFO Saving figure _builder.py:2129
<qtcad.builder.builder.Builder object at 0x7c1a78d95590>
Total running time of the script: (0 minutes 8.341 seconds)
